RPR360PIRR-01

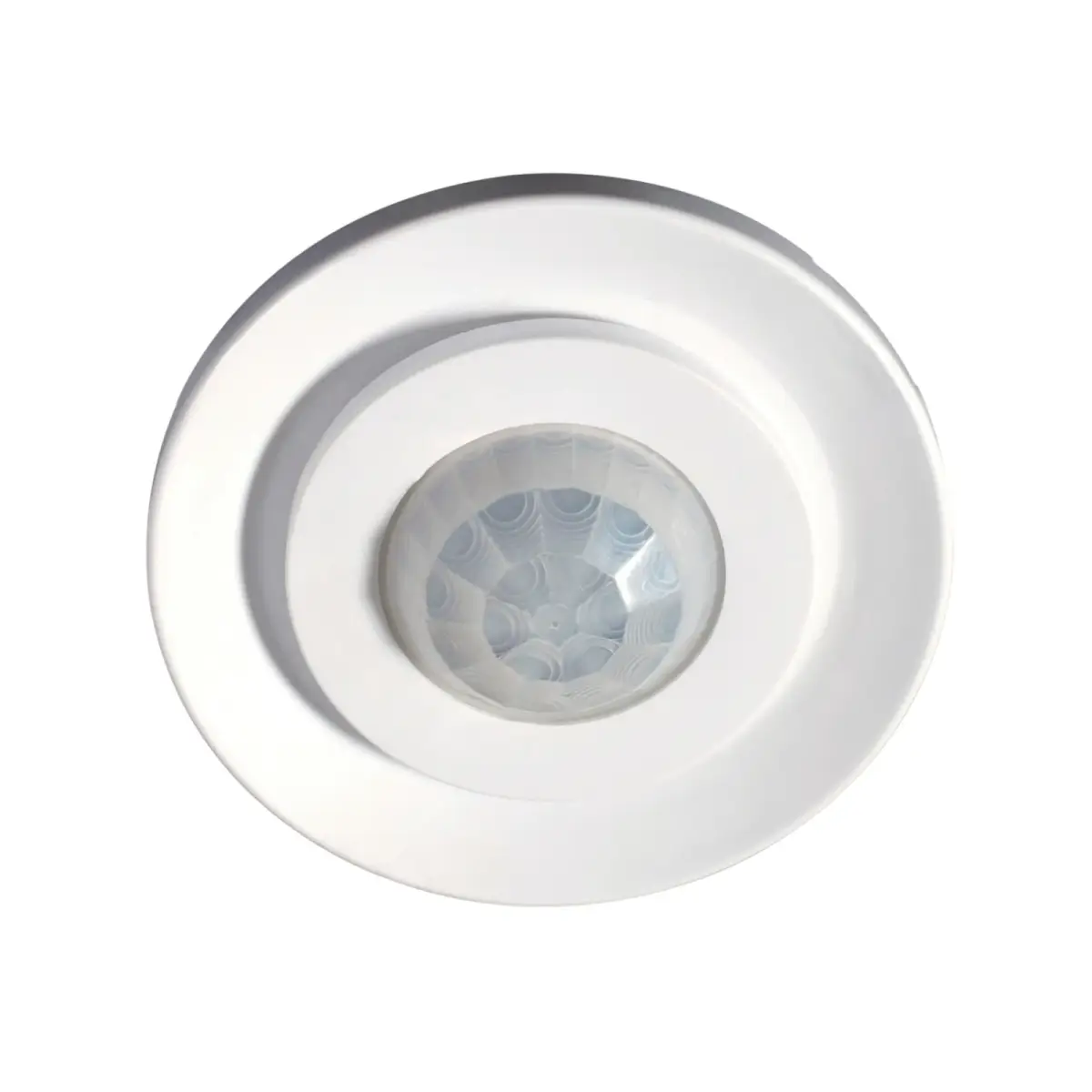

PROTON 360 Degree PIR With Easy Access Control
Features and benefits
Tech specs
Downloads
Accessories
How to videos
Case studies
- Passive infra red ensures light is switched on when sensor detects movement of heat, switched off when area is vacated. Minimises false / unwanted triggering
- Manual over ride with automatic reset after 8 hours
- Large terminals accept 2 x 1.5mm2 conductors in each terminal. Facility for loop in loop out
- Earth terminal included
- 3 wire - multiple sensors can be wired in parallel
- Easy access to adjust time and lux controls once PIR installed
- High load contact rating, allows numerous fittings to be switched
- No minimum load requirements
- Maximum loading: - 800W Incandescent - 400W Fluorescent - 400W LED
- Adjustable time delay of 10sec to 15min
- Adjsutable lux settings 3lx to 2000lx
- Max detection area of 6m diameter at 2.8m
