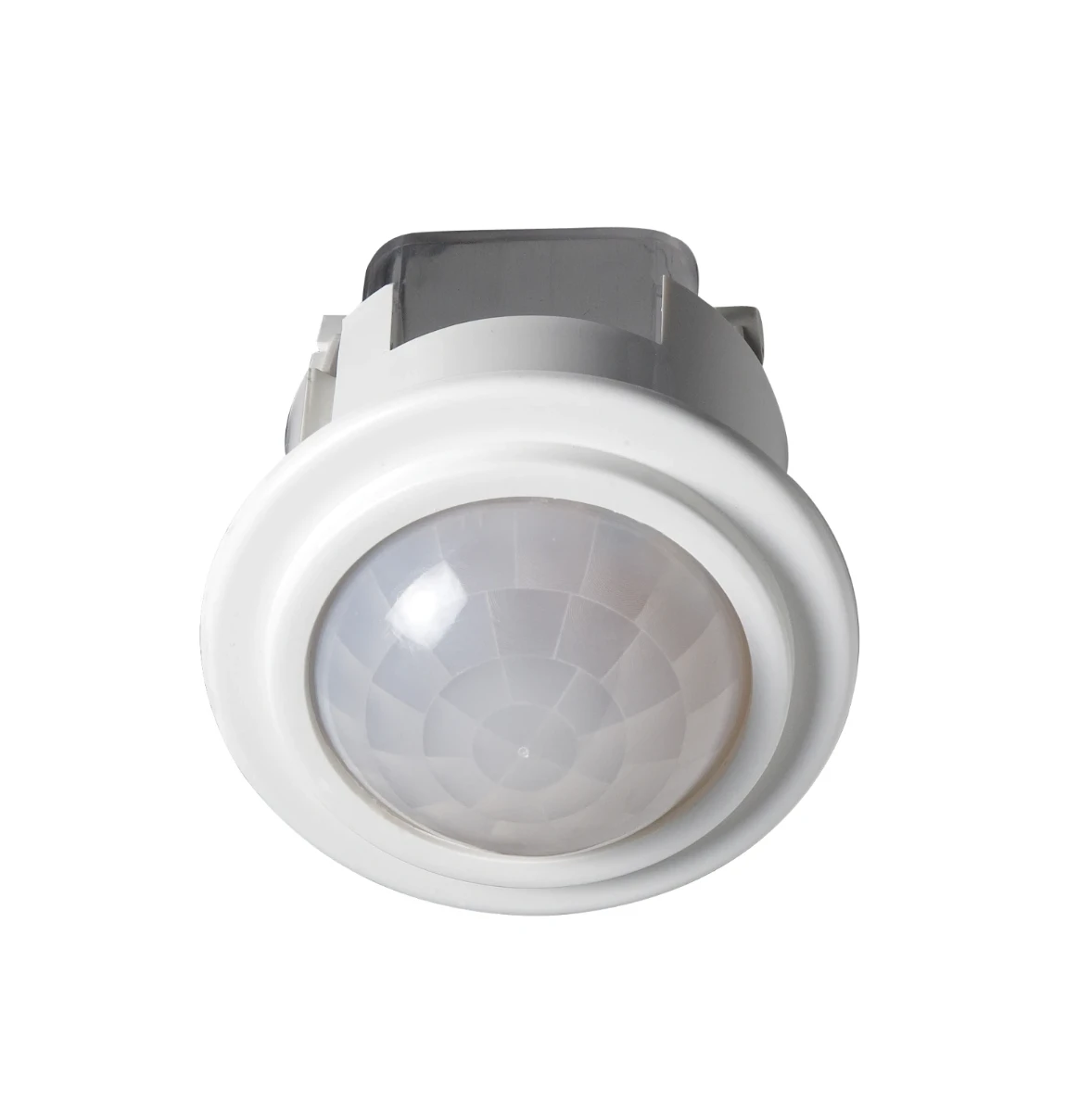

- PROTON 360 Degree PIR, Recessed, IP20, 75mm, White
RR360-01
PROTON 360 Degree PIR
Recessed IP20 75mm White
Features and benefits
Tech specs
Downloads
Accessories
Brochures
How to videos
Case studies
- Suitable for recessed indoor applications
- Injection moulded ABS body - impact resistant
- Clear terminal cover, integral clamp and large mains terminals for 2 x 1.5mm² conductors
- Terminations are safe and visible and enables loop-in/loop-out for supply to other sensors
- Passive infra red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggering
- Detection range 360°, detection distance 9m at 2.8m mounting height
- Adjustable time delay of 5sec to 15min ensures that lighting is switched off with required delay
- Adjustable lux setting of 2lx to 2000lx
- LED load max 300W
- Fluorescent load max 600W
